KWB-IEC8VC19CLICK

£117.00 excl: VAT

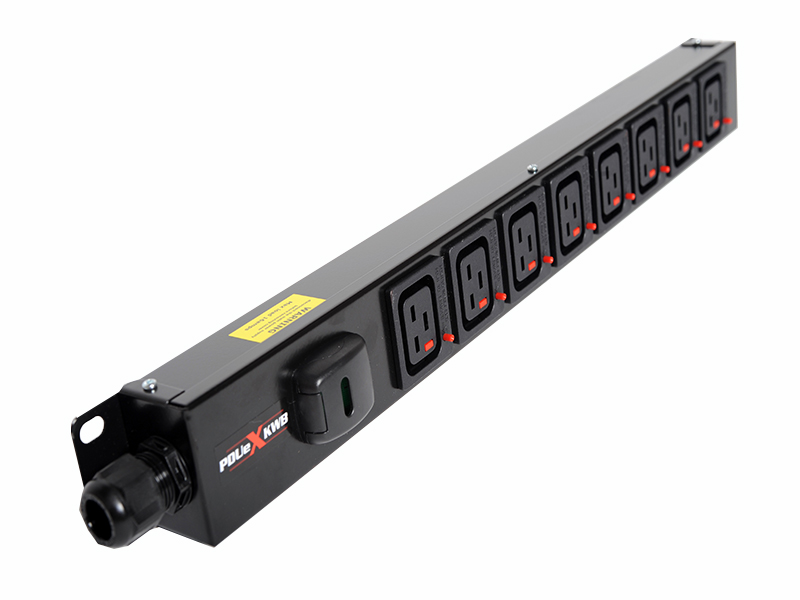

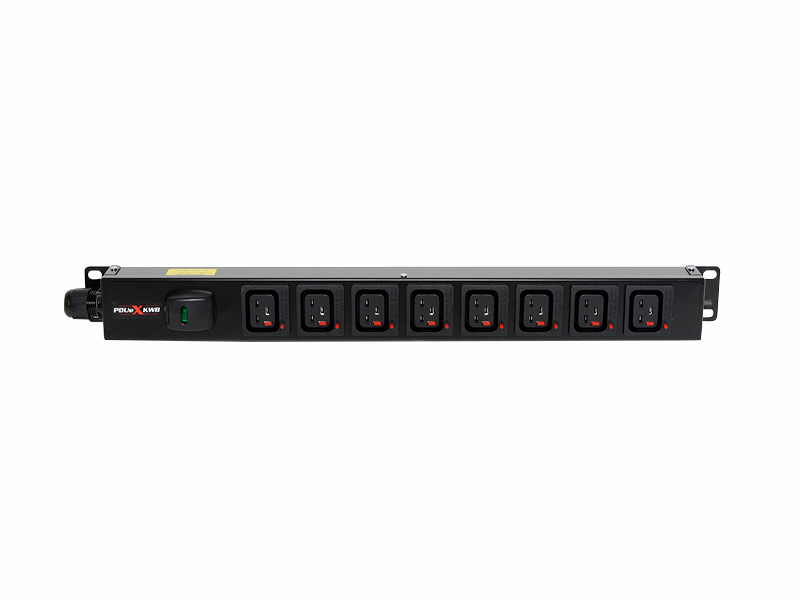

Rack mountable 8-way slimline lockable IEC C19 outlet vertical power distribution unit. Rack PDUs provide reliable rack power distribution via a single input with multiple sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions. Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc .Horizontal & Vertical mounting.

20 in stock

8-way 0U lockable IEC C19 vertical PDU c/w 3 meter standard (H05VV-F) or LSZH (Low Smoke Zero Halogen) cable and connector.

Green illuminated 16amp double pole switch c/w switch cover.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or 32A Commando connectors available.

Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc . Set in black textured mild steel metal work. Standard 3 meter 3 core cable or LSOH. Green illuminated 16amp double pole switch c/w switch cover

IEC C19 lockable vertical part code available : KWB-IEC6VC19CLICK, KWB-IEC8VC19CLICK, KWB-IEC10VC19CLICK, KWB-IEC12VC19CLICK.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available.

Unit Code

KWB-IEC6VC19CLICK

Voltage

230 – 250V

Current

10A, 13A, 16A C20, 16A, 32A

Frequency

50/60Hz

Load Capacity

2.9Kw

Quantity of Input

1

Quantity of Outlets

8

Power Cable
Power Cable Length

3M

Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, C14 PLUG, Schucko PLUG

Outlets Type

6 x lockable IEC C19

Rack Mounting Type

0U

Circuit Protection

No

Switch

Yes

Unit Mounting Type

Vertical

Storage Temperature

497mm x 52mm x 40mm (L x W x D)

Unit Weight

1.4 Kg

Nominal Output Voltage

230 – 250V

Operating Elevation

0 – 2500m

Operating Humidity

0 – 95%

Operating Temperature

0 – 45*C

Download(s)

Download Brochure
