£99.67 excl: VAT

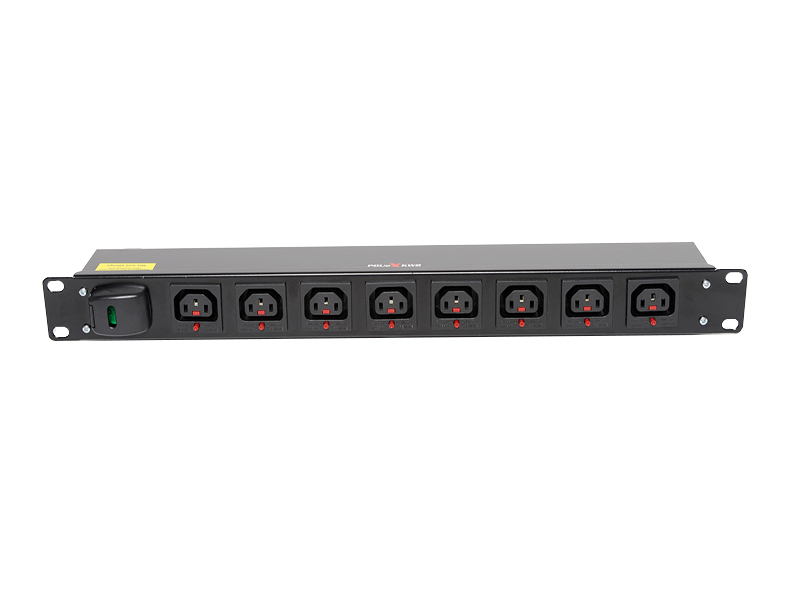

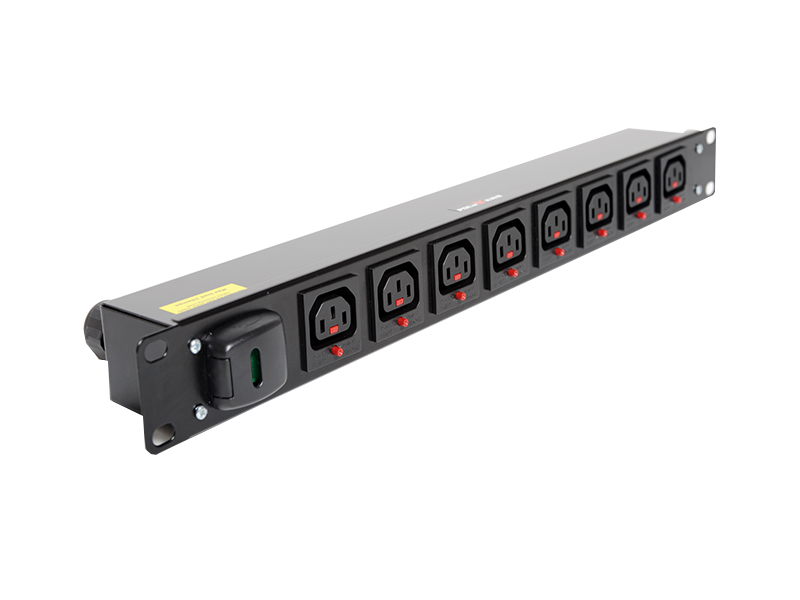

HorizontalIEC-C13 LockablePower Distribution UnitRack PDUs provide reliable rack power distribution via a single input with multiple IEC-C13 lockable sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions. Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating10A operating voltage 250VAc .Horizontal & Vertical mounting.
20 in stock
Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH.Green illuminated 16amp double pole switch c/w switch cover.Horizontal available part code: KWB-IEC4H/CLICK, KWB-IEC6H/CLICK, KWB-IEC8H/CLICK and KWB-IEC10H/CLICK.
13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available.
| Unit Code | KWB-IEC8HC13CLICK |
|---|---|
| Voltage | 230 – 250V |
| Current | 10A, 13A, 16A C20, 16A, 32A |
| Frequency | 50/60Hz |
| Load Capacity | 2.9Kw |
| Quantity of Input | 1 |
| Quantity of Outlets | 8 x lockable IEC C13 |
| Power Cable | 3183Y (STD) or 3183B (LSZH) |
| Power Cable Length | 3M |
| Plug Type | 13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, C14 PLUG, Schucko PLUG |
| Outlets Type | IEC-C13 |
| Switch | Yes |
| Circuit Protection | No |
| Unit Mounting Type | 19" Horizontal |
| Nominal Output Voltage | 230 – 250V |
| Rack Mounting Type | 1U |
| Unit Weight | 1.3KG |
| Unit Dimensions | 440mm x 44mm x 60mm (W x H x D) |
| Operating Temperature | 0 – 45*C |
| Operating Humidity | 0 – 95% |
| Operating Elevation | 0 – 2500m |
| Storage Temperature | 0 – 45*C |
