KWB-IEC8HC19CLICK

£118.07 excl: VAT

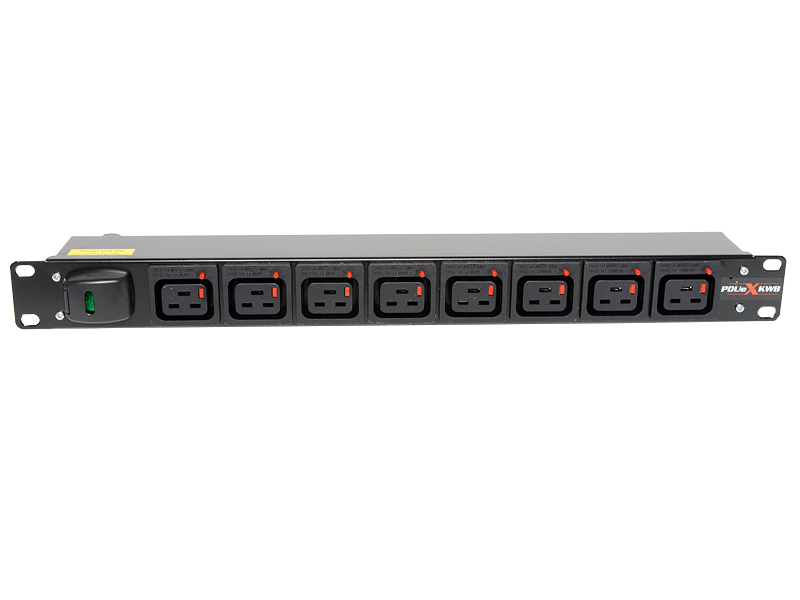

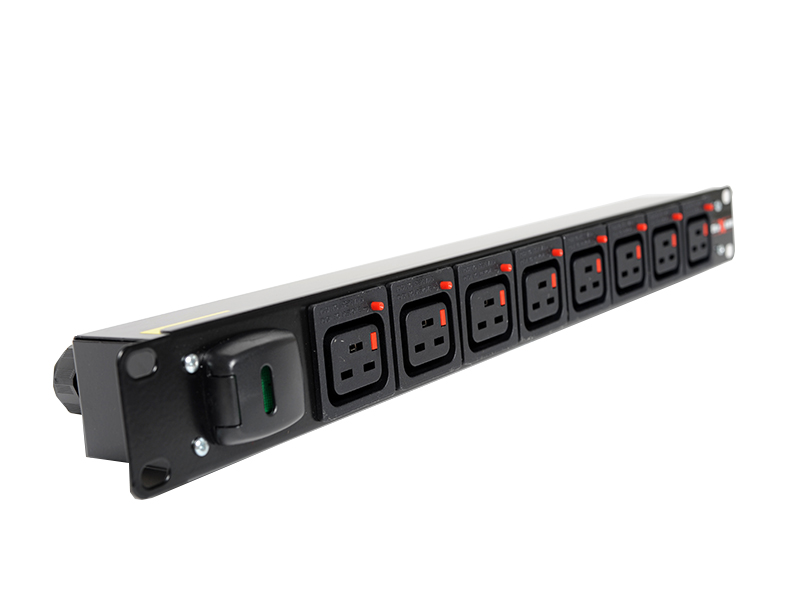

Rack mountable 8-way lockable IEC C19 outlet horizontal power distribution unit. Rack PDUs provide reliable rack power distribution via a single input with multiple sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions. Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc .Horizontal & Vertical mounting

20 in stock

SKU: KWB-IEC8HC19CLICK Category: Tag:

8-way 0U lockable IEC C19 horizontal PDU c/w 3 meter standard (H05VV-F) or LSZH (Low Smoke Zero Halogen) cable and connector.

Green illuminated 16amp double pole switch c/w switch cover.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or 32A Commando connectors available.

Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc . Set in black textured mild steel metal work. Standard 3 meter 3 core cable or LSOH. Green illuminated 16amp double pole switch c/w switch cover

IEC C19 lockable horizontal part code available : KWB-IEC4HC19CLICK, KWB-IEC6HC19CLICK, KWB-IEC8HC19CLICK.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available.

Unit Code

KWB-IEC8HC19CLICK
Voltage

230 – 250V
Current

10A, 13A, 16A C20, 16A, 32A
Frequency

50/60Hz
Load Capacity

2.9Kw
Nominal Output Voltage

230 – 250V
Quantity of Input

1
Quantity of Outlets

8
Power Cable

3183Y (STD) or 3183B (LSZH)
Power Cable Length

3M
Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, 6 x lockable IEC C19, C14 PLUG, Schucko PLUG
Mounting length

8 x lockable IEC C19
Switch

Yes
Circuit Protection

No
Unit Mounting Type

19" Horizontal
Rack Mounting Type

1U
Unit Weight

1.4 Kg
Unit Dimensions

440mm x 44mm x 60mm (W x H x D)
Operating Temperature

0 – 45*C
Operating Humidity

0 – 95%
Operating Elevation

0 – 2500m
Storage Temperature

0 – 45*C

Download(s)

Download Brochure
