Home / KWB-IEC4HC19CLICK

KWB-IEC4HC19CLICK

£89.90 excl: VAT

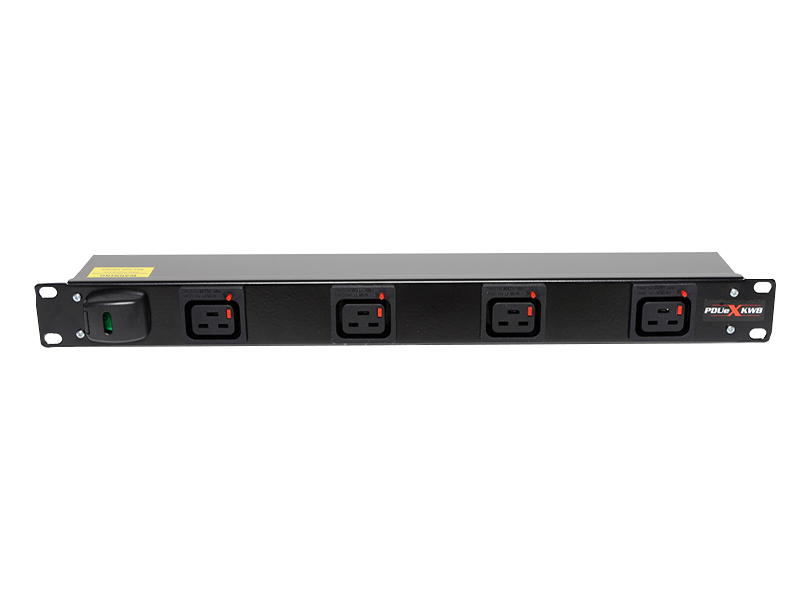

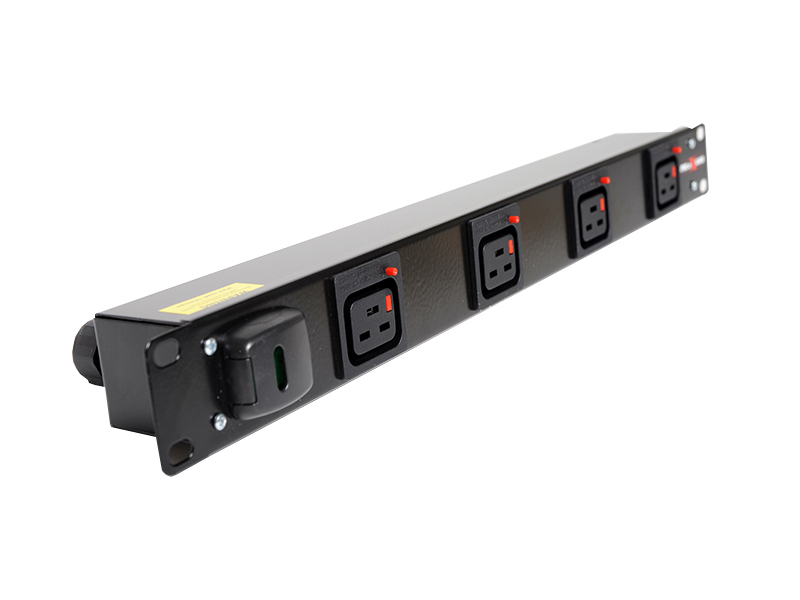

Rack mountable 4-way lockable IEC C19 outlet horizontal power distribution unit. Rack PDUs provide reliable rack power distribution via a single input with multiple sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions. Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc .Horizontal & Vertical mounting.

20 in stock

SKU: KWB-IEC4HC19CLICK Category: Tag:

4-way 0U lockable IEC C19 horizontal PDU c/w 3 meter standard (H05VV-F) or LSZH (Low Smoke Zero Halogen) cable and connector.

Green illuminated 16amp double pole switch c/w switch cover.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or 32A Commando connectors available.

Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc . Set in black textured mild steel metal work. Standard 3 meter 3 core cable or LSOH. Green illuminated 16amp double pole switch c/w switch cover

IEC C19 lockable horizontal part code available : KWB-IEC4HC19CLICK, KWB-IEC6HC19CLICK, KWB-IEC8HC19CLICK.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available.

Unit Code

KWB-IEC4HC19CLICK
Voltage

230 – 250V
Current

10A, 13A, 16A C20, 16A, 32A
Frequency

50/60Hz
Load Capacity

2.9Kw
Quantity of Input

1
Quantity of Outlets

4
Outlets Type

4 x lockable IEC C19
Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, C14 PLUG, Schucko PLUG
Power Cable

3183Y (STD) or 3183B (LSZH)
Power Cable Length

3M
Switch

Yes
Circuit Protection

No
Rack Mounting Type

1U
Mounting length

483mm (19")
Unit Mounting Type

19" Horizontal
Unit Weight

440mm x 44mm x 60mm (W x H x D)
Nominal Output Voltage

230 – 250V
Operating Temperature

0 – 45*C
Operating Humidity

0 – 95%
Operating Elevation

0 – 2500m
Storage Temperature

0 – 45*C

Download(s)

Download Brochure
