Home / KWB-IEC24VINDFS

KWB-IEC24VINDFS

£145.55 excl: VAT

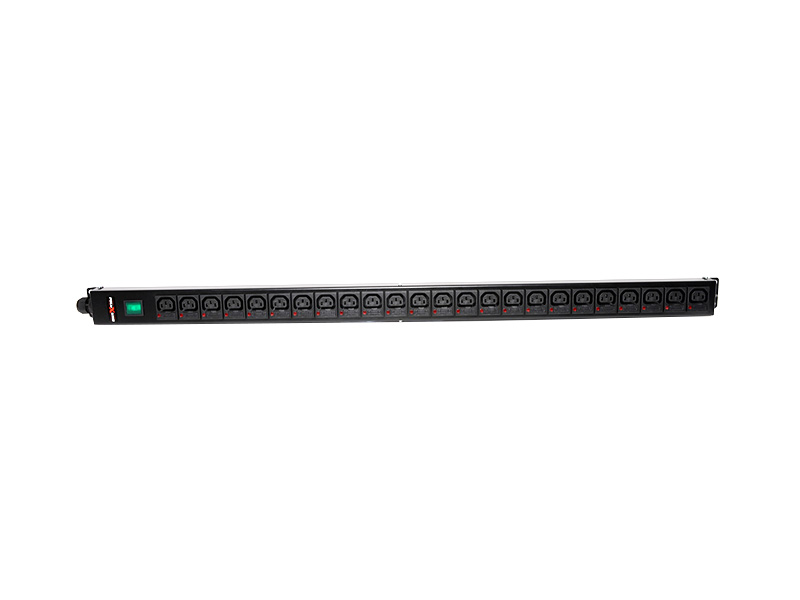

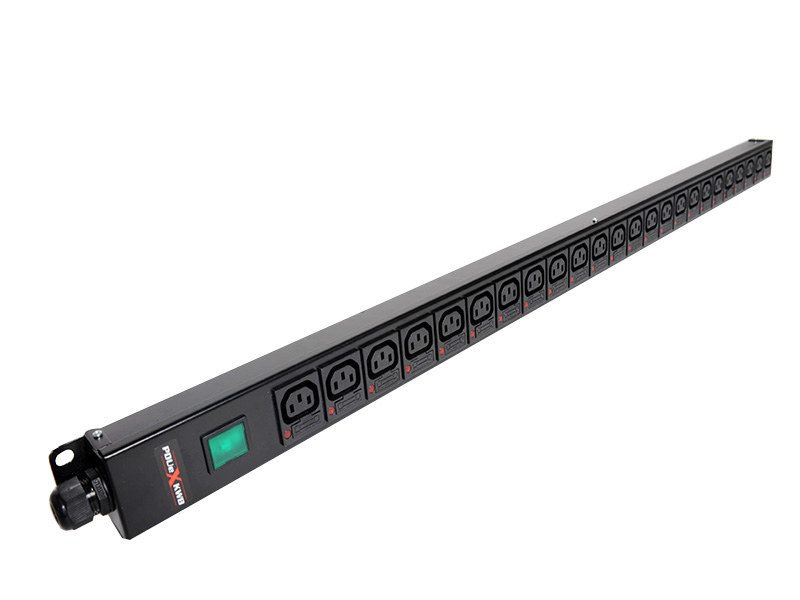

Rack mountable 24 way slimline vertical individually fused IEC C13 outlet Power Distribution Unit.
Rack PDUs provide reliable rack power distribution via a single input with multiple individually fused sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions. Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc .Horizontal & Vertical mounting.

20 in stock

SKU: KWB-IEC24VINDFS Category: Tag:

Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc . Manufactured using BS1363 tee sockets. Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH. Green illuminated 16amp double pole switch c/w switch cover.

Vertical available Part Code:KWB-IEC8VINDFS, KWB-IEC10VINDFS, KWB-IEC12VINDFS, KWB-IEC16VINDFS, KWB-IEC20VINDFS, KWB-IEC24VINDFS.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available

Unit Code

KWB-IEC24VINDFS
Voltage

230 – 250V
Current

10A, 13A, 16A C20, 16A, 32A
Frequency

50/60Hz
Load Capacity

2.9Kw
Quantity of Input

1
Outlets Type

24 x individually fused outlets
Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, C14 PLUG, Schucko PLUG
Quantity of Outlets

24
Power Cable

3183Y (STD) or 3183B (LSZH)
Power Cable Length

3M
Switch

Yes
Unit Mounting Type

Vertical
Rack Mounting Type

0U
Unit Weight

3.4KG
Unit Dimensions

1009mm x 52mm x 40mm (L x W x D)
Circuit Protection

No
Nominal Output Voltage

230 – 250V
Operating Temperature

0 – 45*C
Operating Humidity

0 – 95%
Operating Elevation

0 – 2500m
Storage Temperature

0 – 45*C

Download(s)

Download Brochure
